ReplaceWithVariable

Description:

ReplaceWithVariable indicate to II2LN that the imported image should replace a variable in the rich text field. This is a powerful feature which enables you to use document templates already containing information.

ReplaceWithVariable also enables II2LN to replace variables in any field in the document

Declaration:

ReplaceWithVariable:<Variable>

Parameters:

Notes:

Below the effect of the ReplaceWithVariable import option is demonstrated:

1. The original image is a car-picture

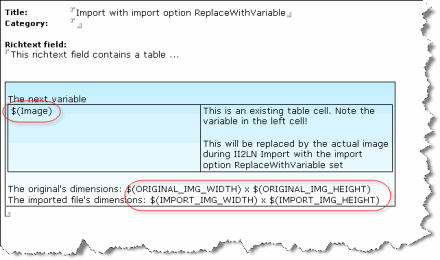

2. Then we have an Notes document with some content in the rich text field



   Note the use of variables in the image above. All variables will be replaced by actual content during import

3. Import the image with the following ImportImage call and the ReplaceWithVariable set

   lRc = ImportImage(_db.Server,_
db.FilePath,_
doc.UniversalID, _
"Body",_
strFileName,_
"ReplaceWithVariable:$(Image);Resize:200,200")

   The LotusScript code above will import the image with the filename stored in strFileName, into the Body rich text field. Note how we specify that we want to replace the $(Image) variable. Finally we resize the image during import to 200 x 200 pixels

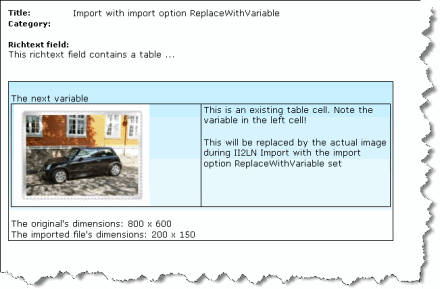

4. Below you see the nice result!


   Note that the $(Image) variable has been replaced by the imported (and reszied) image. Additionally the four image-variables at the bottom has been replaced by their real values! See more on available variables here.

Introduced in version:

1.0.0.0

Repeatable

No
